Large-scale fabrication faces a massive operational bottleneck today. Translating complex 3D digital models into physical assets requires extreme precision. Manual carving or standard 3-axis routers simply cannot scale effectively. They fail to meet industrial demands for theme park props, architectural facades, and composite molds. Modern manufacturing facilities are actively transitioning to high-end multi-axis solutions to overcome these severe limitations.
Evaluating a capital-intensive foam CNC system requires looking far past surface-level specifications. You must assess structural rigidity, dynamic toolpath capabilities, and long-term mechanical reliability to ensure continuous operation. A strategic investment in a true multi-axis foam machining center reduces secondary manual finishing drastically. It eliminates multi-setup alignment errors entirely. You accelerate your return on investment when you match this advanced machinery to the correct materials, tooling strategies, and robust vendor support.
Capability over Footprint: True 6-axis configurations (often categorized as EPS CNC Five Dimensional Six Axis Engraving Machines) allow single-setup machining of complex undercuts, drastically reducing manual realignment.
Rigidity is Non-Negotiable: Processing lightweight foam still requires heavy-duty, FEA-engineered steel frames to counteract the vibration of extended-reach cutting tools.
Material-Driven Processing: The choice between EPS (Expanded Polystyrene) and HDU (High-Density Polyurethane) dictates the required spindle RPM, feed rates, and post-machining coating requirements.
True Cost of Ownership: Industrial multi-axis machines require budgets upward of $85,000; buyers must evaluate vendors based on FAT (Factory Acceptance Testing) and overseas support availability.
Traditional 3-axis and 4-axis systems present severe limitations during large-scale sculptural fabrication. They fail completely when cutting deep undercuts. Operators struggle to process complex lateral detailing or intricate draft angles using standard vertical spindles. You must manually flip and realign massive foam blocks repeatedly. This constant manual handling introduces severe alignment errors. Traditional routers leave prominent tooling marks on steep vertical walls. Workers spend countless hours sanding these ridges manually. You eliminate this bottleneck by deploying a CNC Six Axis Engraving Machine. Single-setup "Five-Face" machining minimizes costly human intervention. The machine rotates the spindle around the workpiece automatically. It cuts the front, back, sides, and top seamlessly. This approach reduces overall cycle times drastically for massive 3D models.
Let us examine the primary target applications and ROI drivers:
Decorative Architecture: You can rapidly produce precise concrete-casting molds. Factories use them to shape GFRC (Glass Fiber Reinforced Concrete) cores and intricate ornamental pillars. High accuracy prevents structural imbalances during final concrete pouring.
Entertainment & Scenography: The entertainment industry requires high-throughput manufacturing. You mill lightweight, oversized stage props and theme park sculptures rapidly. The multi-axis machine easily mills precise interlocking channels for hidden internal steel armatures.
Industrial Prototyping: Automotive and aerospace sectors demand precise volumetric mockups. You produce exact full-scale physical models for aerodynamic testing and critical ergonomic reviews.

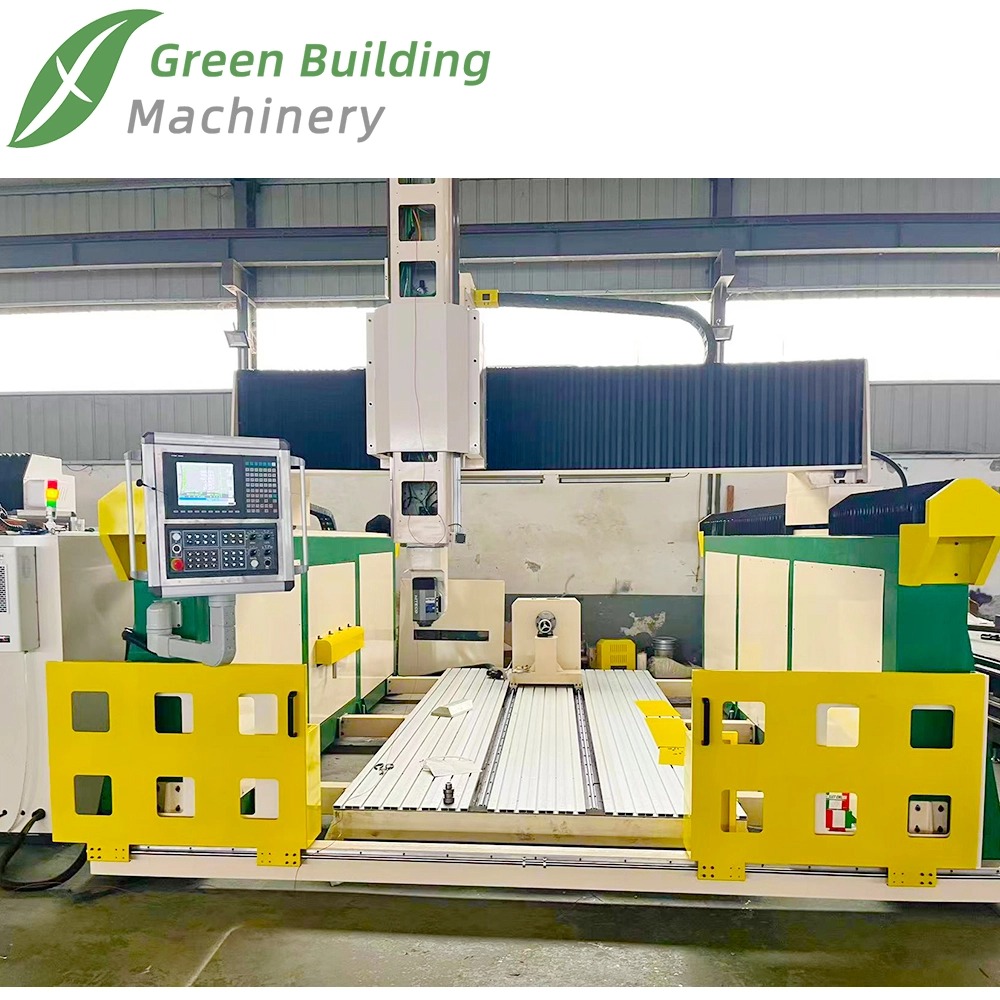

Understanding the internal kinematics behind an EPS CNC Five Dimensional Six Axis Engraving Machine reveals its mechanical superiority. The 5D6X setup breaks down into a highly articulated robotic system. You operate with the standard X, Y, and Z linear axes. The machine adds an A-axis, which controls the spindle swing or tilt angle. A C-axis enables continuous 360-degree spindle rotation. Finally, the setup incorporates a 6th rotary lathe axis. This integrated rotary table spins the workpiece itself. It synchronizes with the 5-axis head to rotate massive foam pillars smoothly while the spindle carves intricate Roman fluting.
Heavy-duty structural integrity remains absolutely vital. Processing lightweight foam still requires massive machine rigidity. You should advocate for stress-relieved, fully welded steel square-tube beds. Avoid machines built from bolted aluminum profiles. Aluminum frames flex under rapid spindle movements. Welded steel counteracts chassis vibration perfectly. We also recommend a "Moving Gantry + Fixed Table" design. This stationary layout allows operators unhindered 360-degree access. A fixed table eliminates the inertia problems associated with moving heavy material back and forth. They can load and position massive foam blocks easily.
Precision drive systems dictate your long-term spatial accuracy. You must utilize zero-backlash ball screws for precise vertical control. High-precision helical rack-and-pinion systems drive the heavy gantry smoothly along the massive rails. Continuous multi-axis interpolation stresses electronic wiring severely. You must demand shielded flexible cables, like IGUS track systems. They prevent electromagnetic interference from corrupting delicate encoder signals during complex movements.
Spindle and motor safety imperatives protect your capital investment. Heavy multi-axis spindle heads weigh hundreds of pounds. Power failures cause these heavy heads to drop instantly. You need heavy-duty servo motors equipped with built-in Z-axis brakes. These mechanical brakes lock the vertical axis upon unexpected power loss. They prevent the heavy multi-axis head from crashing downward. You save the workpiece and avoid destroying expensive cutting tools.
Your raw material choice dictates spindle speeds and tooling configurations. A heavy-duty Foam EPS Engraving Machine processes multiple foam densities easily, but you must pair your strategy to the substrate.
Material Type | Cell Structure | Cost Profile | Surface Finish Quality | Ideal Applications |
|---|---|---|---|---|
EPS (Expanded Polystyrene) | Beaded | Highly Cost-Effective | Rougher, shows distinct bead lines | Massive theme park props, large mold blanks |
HDU (High-Density Polyurethane) | Closed-Cell | Premium Cost | Razor-sharp, ultra-smooth edges | Intricate architectural details, precision signs |
EPDM Foam | Closed-Cell Blend | Moderate to High | Clean cuts, highly flexible edges | Impact-resistant packaging, shock absorbers |
EPS offers cost-effective scalability for massive outdoor sculptures. However, it leaves a beaded finish requiring extensive hard-coating. HDU and EPDM feature dense closed-cell structures. They hold razor-sharp details without tearing or chipping. They serve intricate architectural elements perfectly, despite carrying a higher initial raw material cost.
Tooling strategies must account for severe deep cavities. Processing giant foam blocks requires extra-long end mills. This creates a distinct deflection challenge. Extended cutting tools bend and vibrate under high feed rates. High-end spindles mitigate tool runout through precision ceramic bearings. Tool selection impacts the final texture directly. You should use straight spiral upcut bits for aggressive roughing passes. They evacuate large foam chips rapidly. Conversely, you select ball-nosed bits for ultra-smooth 3D finishing. They glide across complex contours flawlessly.
Post-processing introduces significant chemical compatibility risks. You must warn your finishing team about solvent-based aerosols. These chemicals melt EPS and XPS foam instantly, destroying hours of precision milling. Industrial coating workflows protect the raw foam substrate effectively. You transition a raw 3D EPS Foam Engraving Machine output into a permanent structure using advanced spray systems. Workers apply plural-component Polyurea coatings using heated high-pressure rigs. This chemical reaction creates a rigid, waterproof shell within seconds. Alternatively, GFRC spray systems add structural fire resistance, transforming a fragile foam core into a permanent architectural facade.
Hardware relies entirely on sophisticated CAM software capabilities. Upgrading to a 3D Six Axis EPS Foam Engraving Machine requires advanced programming tools. Basic 2.5D routing software cannot calculate complex spatial curves. You must transition to high-end multi-axis CAM platforms. Siemens NX, Fusion 360, or specialized Powermill modules handle these tasks efficiently. They generate collision-free 5-axis simultaneous toolpaths. They simulate the machine kinematics digitally to prevent catastrophic physical crashes.
Managing oversized projects requires strategic digital planning. Many sculptures exceed even massive 5x10 machine envelopes. You resolve this by slicing and indexing the 3D model. Digital slicing strategies transform impossible projects into manageable tasks. You dictate the slice thickness based on your local foam supplier's sheet dimensions. The CAM software automatically generates dowel-pin indexing holes across every mating surface. Workers insert wooden or fiberglass rods into these holes during assembly. This ensures perfect layer-to-layer registration, eliminating manual measuring errors. Operators glue and stack the pieces using specialized structural adhesives.
Controller ecosystems dictate execution speed and fluidity. You must demand industrial-grade controllers like FANUC or Syntec. Hobbyist GRBL boards cannot process heavy multi-axis files. They suffer from severe buffer lagging. This lagging causes the spindle to stutter and burn the foam. Industrial controllers feature advanced block processing. They analyze thousands of upcoming G-code lines to optimize acceleration and deceleration curves. They maintain continuous, fluid tool movement across complex 3D surfaces.
Evaluating capital machinery requires looking past marketing specifications. You must assess the Foam Engraving Molding Machine manufacturer critically. Pricing models vary wildly based on rigidity and axis count.
Consider these realistic pricing tiers for industry benchmarking:
Entry-to-Mid Systems: Basic 4-axis or rotary-equipped models range from $15,000 to $50,000. These machines handle basic architectural pillars and 2.5D dimensional signage efficiently.
Industrial True Multi-Axis: Industrial 5-axis and 6-axis centers demand capital budgets exceeding $85,000. They feature articulated rotating heads, Automatic Tool Changers (ATC), and extreme frame rigidity.
You should never purchase equipment solely based on spec sheets. Require this strict buyer's Service Level Agreement (SLA) checklist:
Pre-Shipment Sample Testing: Demand a Factory Acceptance Test (FAT). A legitimate FAT involves recording the entire milling process on video. The vendor must prove the machine handles your specific CAD geometry without alarming or stalling.
Transparent Component Sourcing: Verify the origins of critical internal parts. Insist on genuine Japanese servos, Italian spindles, and Taiwanese precision guideways.
Overseas Support Availability: Multi-axis systems require expert installation. Ensure the vendor provides overseas on-site commissioning. They must deliver comprehensive operator training to guarantee safe deployment.
Purchasing an industrial multi-axis foam router represents a major leap into advanced manufacturing. Your success relies heavily on three distinct pillars. You need uncompromising mechanical rigidity to absorb vibrations. You need sophisticated CAM workflow strategies to generate safe toolpaths. Finally, you need advanced chemical knowledge of foam finishing to protect your final assets.
We encourage buyers to request a documented time-study from shortlisted vendors. Demand a physical test-cut to validate spindle performance and toolpath efficiency before committing capital. Standardize your tooling libraries to combat deflection before production begins. Invest heavily in proper operator training for 5-axis CAM programming. Proper preparation guarantees a smooth transition into profitable, full-scale 3D production.
A: A 4-axis machine typically adds a simple rotary lathe or a single-direction pivoting head to standard linear movements. It indexes the part for basic cylindrical work. A 6-axis machine offers full simultaneous tool articulation. It utilizes an A-axis swing and C-axis rotation alongside a rotary bed. This combination allows it to machine complex, deep undercuts in a single continuous setup without pausing.
A: Yes. Manufacturers optimize these routers for EPS, HDU, and Polyurethane foam. However, heavy-duty rigid machines handle much denser materials easily. By adjusting your spindle RPM and significantly lowering feed rates, you can successfully process MDF, fiberglass, tooling board, and softwoods. Ensure you use the correct cutting tools to avoid overheating the spindle or damaging the equipment.
A: Preventing tool breakage requires managing deflection actively. You must optimize your stepover parameters and maintain a consistent chip load. Using tapered ball-nose tools adds massive structural strength to the bit shaft. Finally, ensure absolute spindle concentricity. Even minor runout vibrations will snap a long end mill instantly. Always balance your tool holders before initiating high-speed spindle operations.
A: Absolutely. EPS foam dust creates massive static cling. Standard wood dust extractors clog immediately because the foam beads stick to the internal hoses. You must install a high-CFM dust collection setup. Ensure you equip it with anti-static grounding wires and specialized cyclone separators. These components manage the lightweight, static-charged particulate safely without creating fire hazards in your shop.
