In the modern manufacturing landscape that prioritizes efficiency and precision, polystyrene has become a critical material in industries such as architectural modeling, product prototyping, and advertising displays due to its lightweight nature, ease of shaping, and excellent thermal insulation properties. However, its brittleness makes traditional manual processing inaccurate and inefficient. CNC polystyrene cutting machines integrate computer numerical control with hot wire cutting technology, enabling efficient, precise, and repeatable production of complex three-dimensional forms, ushering in a new era of intelligent lightweight material processing.
The essence of CNC polystyrene cutting lies in hot wire cutting (HWC),a perfect fusion of thermal energy control and precision motion:
A nichrome resistance wire, electrically heated to high temperatures (above 200°C), melts the polystyrene upon contact (without combustion). The molten material is efficiently separated by the wire's tension and motion, creating a smooth, dust-free cut surface.
The CNC system interprets digital models from CAD/CAM software, converting them into G-code commands. These drive high-precision stepper/servo motor systems. Coordinated with ball screws and linear guides, the motors control the cutting head's interpolation motion across three dimensions (X/Y/Z axes) or even rotational axes (A/B), achieving micron-level accuracy to faithfully reproduce complex shapes.
Temperature Control: Sensors monitor wire temperature in real-time; the controller precisely adjusts current/voltage via PID algorithms to maintain stable temperature (±5°C), directly impacting cut finish (too low causes roughness, too high causes charring).
Speed Control: The CNC system dynamically optimizes feed rate based on path complexity and material thickness/density. Speed and temperature must match precisely: excessive speed causes incomplete cuts or burrs; insufficient speed causes excessive kerf width and material deformation. The system auto-slows for corners and intricate paths.
Compared to traditional methods, CNC polystyrene cutting delivers transformative benefits:

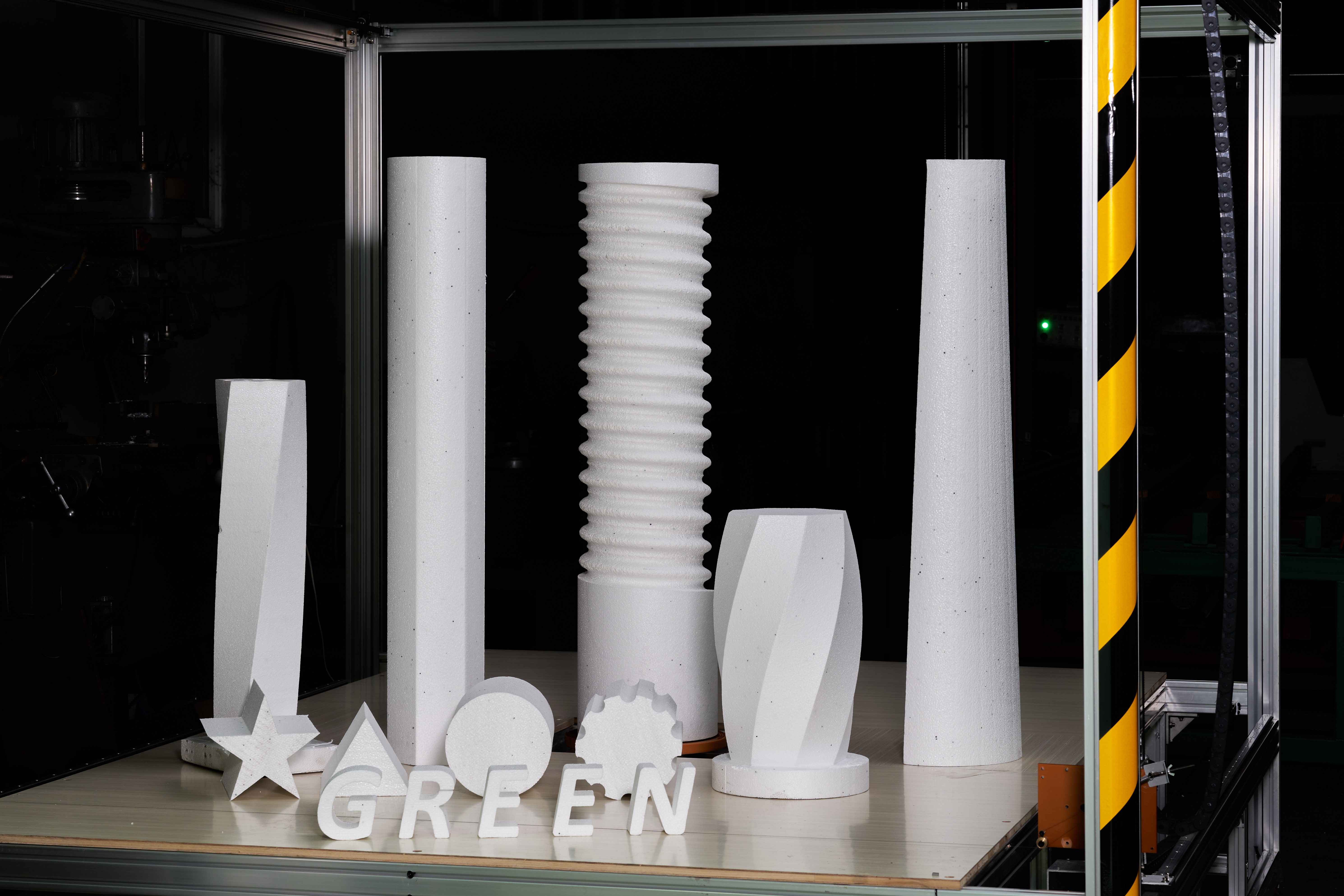

Easily creates complex 3D surfaces (architectural domes, car models) and intricate internal structures (lattices, interlocking joints).
High repeatability (±0.1mm tolerance) meets demanding prototyping needs.
High cutting speeds far surpass manual work, ideal for large batches.
Software auto-nests parts, maximizing material yield for continuous, automated cutting of multiple parts per sheet.
Rapid product changeovers require only digital file swaps.
Thermal melting produces a "near-polished" smooth surface, reducing or eliminating sanding, ideal for direct painting.
Dust-free operation significantly improves the work environment, protects health, and lowers cleaning costs.
Perfectly retains sharp edges and fine features like thin walls (down to 1-2mm).
Translates any CAD-designed complex shape into physical reality.
Accelerates prototype iteration (within hours) for functional testing, aesthetic evaluation, and client presentations.
Makes small-batch, highly customized production (displays, props, packaging) economically viable.
CNC polystyrene cutting machines empower multiple industries:
High-precision architectural models (facade details, complex cladding), urban masterplan models, interior layouts.
Rapid concept massing models, complex topographical contour models.
Functional prototypes (housings, structural parts) for assembly checks and ergonomic testing.
High-precision lost-foam patterns (EPS molds) for casting.
Custom lightweight jigs, fixtures, and inspection gauges.
Efficient cutting of large, complex 3D letters and logos.
Fabrication of creative booth structures, backdrops, and interactive installation cores.
Rapid production of stage sets and film/TV props (simulated stone, sci-fi elements).
Technology development focuses on smarter, more versatile, and greener solutions:
Machine vision integration for automatic material positioning, real-time cut quality inspection, and error correction.
AI-powered analysis of materials and paths to auto-optimize temperature-speed settings for "one-click optimal cutting".
IoT connectivity enabling remote monitoring, predictive maintenance, and performance analytics.
Hybrid machining: Integration of rotary milling tools for added capabilities (milling, drilling, engraving on PU/PE foams).
Enhanced processing for higher-density EPS/XPS, flame-retardant polystyrene, and select thermoplastics.
Adoption of linear motors and lightweight components for higher speeds and dynamic response.
Development of efficient electro-thermal conversion (e.g., high-frequency induction) and smart energy modes to reduce consumption.
Integration of scrap recycling/compaction systems to promote material circularity.
The CNC polystyrene cutting machine embodies the convergence of computer control, thermal science, and precision engineering. With unparalleled efficiency, accuracy, and complex shaping capabilities, it transforms digital concepts into lightweight physical reality, revolutionizing polystyrene processing.
