Scaling enterprise foam processing exposes massive challenges for growing manufacturing facilities. Production managers frequently battle inconsistent kerfs, severe workflow bottlenecks, and the glaring inefficiencies of manual template routing. These issues compound rapidly when working with oversized material blocks. Operating at industrial volumes requires absolute precision across massive spans. Standard steel rigs cannot maintain straight lines over long distances. They experience severe structural warping under continuous use. This physical distortion creates unacceptable failure rates on the production floor.

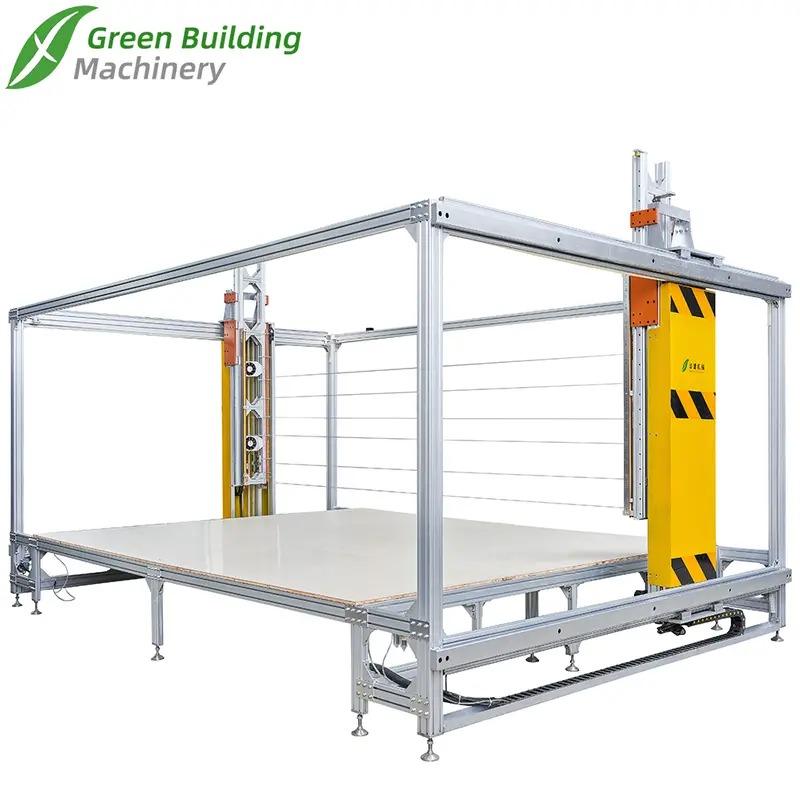

We explore the reasons the commercial standard is rapidly shifting toward robust, professionally engineered solutions. You will learn an evidence-based evaluation framework to integrate a 4M Aluminum Alloy Foam Cutting Machine into your existing facility. Expect clear, actionable guidelines on workflow optimization. We also cover mastering physical cutting mechanics and enforcing vital safety compliance across your operations.
Material Rigidity: Aluminum alloy frames prevent thermal and physical distortion over a 4-meter span, ensuring true straight-line cuts.
The Precision Triangle: Flawless cuts require dynamic balancing of wire temperature, feed speed, and tensioning mechanisms.
Workflow Optimization: Proper CAD/CAM path planning (lead-in/lead-out) and physical material anchoring are non-negotiable for zero-defect production.
Compliance & Safety: Enterprise setups mandate strict EHS protocols, including source-point fume extraction and localized temperature control.
The foundation of any large-format CNC system dictates its operational lifespan. You must evaluate the physical framework before considering software or cutting speeds.
A 4-meter cutting bed demands extraordinary structural stability. Gravity exerts constant downward force on the central span of the gantry. Standard steel frames struggle under these physical demands. They suffer from severe thermal expansion during prolonged heating cycles. Steel also experiences weight-induced sagging over time. This sagging bows the cutting wire downward.
Conversely, lightweight aluminum alloy profiles provide superior stiffness-to-weight ratios. Extruded aluminum resists warping. It maintains strict dimensional stability even under high thermal loads. Upgrading to a 4M Aluminum Alloy Foam Cutting Machine guarantees true straight-line cuts across the entire material block.
Feature | Aluminum Alloy Frames | Standard Steel Frames |
|---|---|---|
Weight | Lightweight, reducing motor strain | Heavy, increasing mechanical wear |
Thermal Expansion | Minimal distortion during long shifts | High expansion, causing calibration shifts |
Span Rigidity | Excellent support over 4 meters | Prone to center-sagging over time |
Corrosion Resistance | Naturally oxidation-resistant | Requires constant painting or coating |
You cannot achieve flawless cuts without constant wire tension. Manual springs fail on wide-span setups. Pulley-weight systems also fall short in industrial environments. They simply cannot counter the severe thermal expansion of a 4-meter hot wire. When the wire heats up, it elongates significantly. Springs lose their tensile strength. This leaves the wire dangerously loose.
Industrial machines solve this issue through advanced engineering. They utilize pneumatic cylinders or heavy-duty mechanical tensioners. These active systems adjust tension dynamically. If the wire expands by an inch, the pneumatic cylinder instantly retracts to take up the slack. This mechanism counteracts thermal expansion perfectly. It maintains a strict linear path regardless of temperature fluctuations.
Electrical components require rigorous evaluation for large-format cutting. A 4-meter bed requires a specialized power delivery system. You need high-amperage, variable transformers. These units must heat long lengths of 20-22 AWG Nichrome wire consistently. Standard hobbyist transformers cannot push enough current across 4 meters.
Undersized transformers pose major risks. They overheat quickly. They may also short-circuit under continuous industrial loads. Commercial-grade setups regulate current dynamically. They ensure uniform heat distribution from one end of the wire to the other. This prevents cold spots and subsequent material dragging.
Operators must understand the physical science behind the equipment. CNC hot wire cutting relies entirely on radiant thermodynamics.
Hot wire cutting is a non-contact process. The wire does not slice the foam mechanically. Instead, the heated wire vaporizes EPS or XPS foam fractions of a millimeter before physical contact occurs. This radiant heat creates a micro-climate around the wire. Vaporization prevents static debris buildup. It also guarantees perfectly smooth edges without the jagged tearing caused by traditional saw blades.
Wire material dictates cutting quality. Nichrome wire is the absolute industry standard. We strongly critique alternative wires for industrial applications. Copper wire offers incredibly low electrical resistance. It shorts out high-amperage transformers almost instantly. Stainless steel expands wildly under heat. It sags severely and becomes brittle after a few cooling cycles.
Nichrome boasts exceptional properties. It delivers high electrical resistance. It maintains a high melting point. It also offers outstanding oxidation resistance. This makes it perfect for continuous enterprise production.
Flawless cuts demand a dynamic balance of three core variables. Operators refer to this as the precision triangle. You must control heat, speed, and tension simultaneously.
Imbalanced Variable | Physical Result | Impact on Quality |
|---|---|---|
Heat Too High | Uncontrolled material vaporization. | Generates toxic fumes and widens the kerf unpredictably. |
Speed Too Fast | Wire cannot melt foam fast enough. | Causes physical wire "drag" (U-shape bending), destroying accuracy. |
Tension Too Low | Wire flutters during movement. | Results in wavy, inconsistent, and ribbed surface finishes. |
Hardware is only half of the equation. Standardizing your software workflow and machine-side preparation is equally crucial. This ensures zero-defect production cycles.
Continuous cutting paths are strictly necessary. Hot wires act like continuous bandsaws. They cannot retract on the Z-axis midway through a cut. You cannot plunge the wire into the center of a solid block.
Operators must program precise pathing into their CAM software. You must designate "lead-in" and "lead-out" coordinates. This routes the wire safely into the material and out again. Furthermore, operators must address kerf offset calculations. The radiant heat melts a small gap wider than the wire itself. You must offset your digital toolpath to account for this vaporization gap. Ignoring kerf offsets always results in undersized finished parts.
Machine-side preparation dictates the success of high-speed passes. Follow these specific steps to stabilize your environment:
Implement Micro-Environmental Control: Eliminate all ambient drafts or warehouse breezes. Moving air cools the wire unevenly. This creates localized hard spots, causing the wire to drag and warp the cut.
Square the Raw Material: Ensure the initial foam block sits perfectly parallel to the X and Y axes. Misaligned blocks guarantee crooked final geometries.
Apply Physical Anchors: Always apply physical weights to top-load the EPS blocks. High-speed passes create friction. This friction easily shifts lightweight foam materials out of position. Top-weighting prevents this entirely.
Run a Test Square: Execute a small test cut on a scrap piece. Measure the final dimensions to verify your digital kerf offset calculations.
Scaling facilities must look for throughput multipliers. Utilize advanced nesting strategies in your CAD software. Nesting tightly packs multiple geometric shapes into a single material block. This maximizes raw material yield. You should also consider dual-wire or multi-wire setups. A robust 4M Aluminum Alloy Foam Cutting Machine can easily support multiple tensioned wires. This configuration doubles or triples production capacity per cycle.
Large-format CNC equipment transforms capabilities across diverse industrial sectors. Precision cutting enables complex manufacturing previously deemed impossible.
Architectural & Construction: Facilities manufacture custom insulation panels and intricate concrete formworks. They also cut large exterior moldings. The CNC precision ensures exact gap-matching for demanding installation sites.
Aerospace & Automotive: Engineers rely on these machines for rapid prototyping. They cut lightweight aerodynamic wings using complex tapered cuts. Automotive suppliers use them to manufacture custom seat cushioning blocks rapidly.
Commercial Packaging: High-volume production lines require repeatability. They churn out precision-fit shipping inserts. These inserts protect sensitive electronics and fragile medical devices during global transit.
Transitioning from manual routing to a 4-meter CNC setup transforms operational efficiency. The financial benefits are immediate and measurable. You drastically reduce manual labor hours. The system entirely eliminates the need for physical template fabrication. Furthermore, advanced digital nesting maximizes raw material yield. You convert more raw foam into sellable products and generate significantly less scrap.
Industrial thermal cutting requires strict adherence to environmental, health, and safety (EHS) protocols. You must protect your operators and your facility.
Enterprise setups mandate rigorous safety standards. Always enforce the "lowest viable temperature" rule. Set the transformer heat to the lowest setting that still cuts smoothly. Higher temperatures do not cut faster. They simply generate excess toxic off-gassing. Engineering controls are also mandatory. You must install snorkel exhausts or active fume extraction intakes. Place these intakes within 6 inches of the cutting source to capture vapors immediately.
Understand the strict limitations of hot wire technology. You must never cut wet foam. Moisture instantly drops wire temperature and causes snapping. Warn operators against cutting glued blocks. Standard adhesives do not melt like polystyrene. Glue physically blocks the hot wire and causes immediate wire failure. Never attempt to cut highly flammable materials or polyurethanes.
Outline clear disposal protocols for your facility. Route clean, uncolored EPS directly to recycling channels. Colored XPS or contaminated foam usually requires specific landfill routing. Always consult local municipal regulations.
Downtime hurts profitability. Use this rapid diagnostic guide to resolve common issues instantly:
Wire Snapping: First, check for an excessive feed rate. If the machine moves faster than the wire melts, tension spikes and snaps the wire. Second, inspect the raw foam block for localized impurities or hidden glue lines.
Transformer Overheating: Diagnose improper wire gauge immediately. Using a wire with insufficient resistance causes a near-short circuit. This overloads the transformer. Upgrade to a thinner wire (higher AWG) or a heavier-duty power supply.
Wavy Surface Finish: Inspect your pneumatic tensioners. The system is likely failing to retract and take up thermal slack. Clean and lubricate the tensioning cylinders.
Upgrading your production floor requires careful evaluation of core mechanical architecture. Standard steel frames inevitably warp over massive spans. Relying on outdated manual templates restricts your throughput capacity. Modern facilities demand precision, speed, and unwavering reliability.
Keep these action-oriented next steps in mind when evaluating new equipment. Request detailed test cuts on your specific foam density. Audit the manufacturer's tensioning mechanism thoroughly. Verify CAM software compatibility before finalizing any purchase. Reiterate to your procurement team that investing in a robust aluminum alloy setup guarantees dimensional stability. It enforces strict environmental compliance. Most importantly, it secures repeatable, zero-defect production speeds for years to come.
A: The optimal choice is 20-22 AWG Nichrome wire. This specific gauge provides the perfect balance of high electrical resistance and physical tensile strength. It withstands the extreme mechanical tension required over a 4-meter span without snapping or stretching excessively under heat.
A: Run a small test square at your designated production speed and heat. Measure the actual cut piece against your digital CAD dimensions. The missing dimension is your vaporization gap. Input this exact offset value into your CAM software to ensure accurate finished parts.
A: No. Cutting polyurethane foam with a hot wire poses severe health and safety risks. PU foam emits highly toxic cyanide gas when heated. It also presents a massive fire hazard. Hot wires are strictly designed for thermoplastics like EPS, XPS, and EPP.
A: A fully independent 4-axis system (X, Y, U, V) is completely sufficient for complex tapered geometries. It allows the left and right towers to move independently. You only need to add rotational axes if you plan on executing complex cylindrical turning or 3D lathing.
