GB-SPC200~600A
GREEN BUILDING MACHINERY

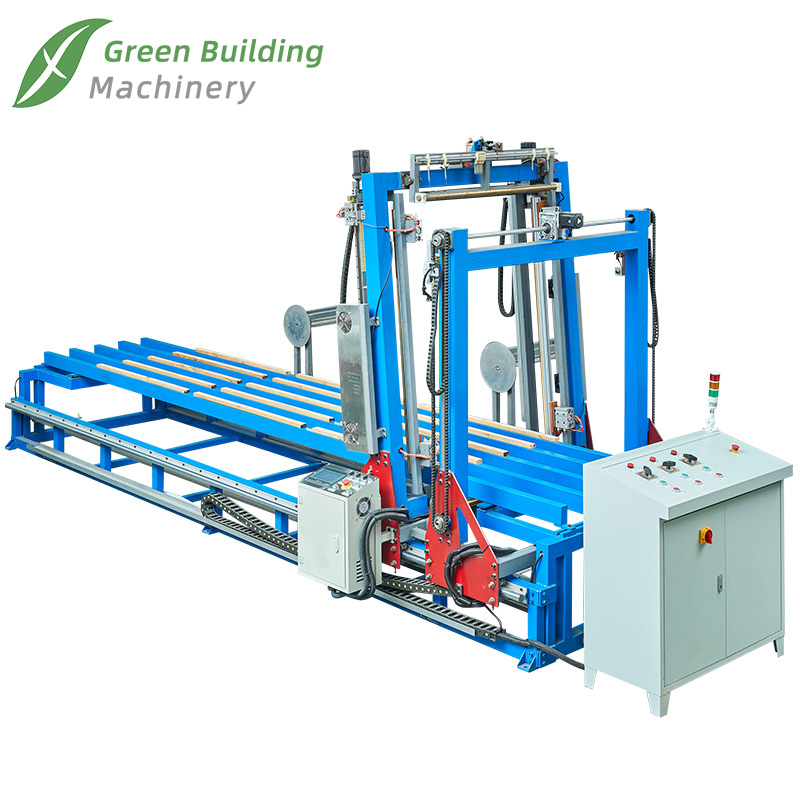

Professional High-Efficiency EPS Foam Hot Wire Cutting Machine
This machine is a high-performance hot wire cutting device specifically designed for the precise cutting of EPS and similar foam materials. It integrates a robust structure, precision transmission, intelligent control, and flexible electrical heating adjustment into one system. Widely applicable in industries such as building insulation, packaging mold manufacturing, advertising & exhibition displays, and craft/model making, it meets diverse needs from standard panel cutting to complex contour machining.
1. Sturdy & Precise Mechanical Foundation:
The main frame is constructed from high-strength industrial profiles using precision welding techniques and specialized reinforcement connectors (e.g., high-strength angle brackets, adjustable leveling feet). This provides exceptional rigidity and vibration resistance, forming a solid foundation for long-term, high-precision operation.
2. Efficient & Smooth Transmission System:
Horizontal Cutting (X-Axis): Stepper motor drive coupled with high-precision synchronous belt transmission ensures smooth, low-noise operation.
Vertical Cutting (Y-Axis): Stepper motor drive combined with precision ball screws and linear guides achieves high-rigidity, near-zero-backlash, high-precision linear motion.
Cut-off / Lifting (Z-Axis): High-torque geared motor drive with durable chain transmission guarantees stable and powerful lifting of the cutting carriage with strong load-bearing capacity.
Overall Advantage: Three-axis independent drives with stepless speed adjustment (via PLC control) adapt to various cutting requirements. Superior mechanical design ensures an exceptional repeat positioning accuracy of ±0.05mm for reliable and precise cutting dimensions.
3. Intelligent & Flexible Hot Wire Cutting:

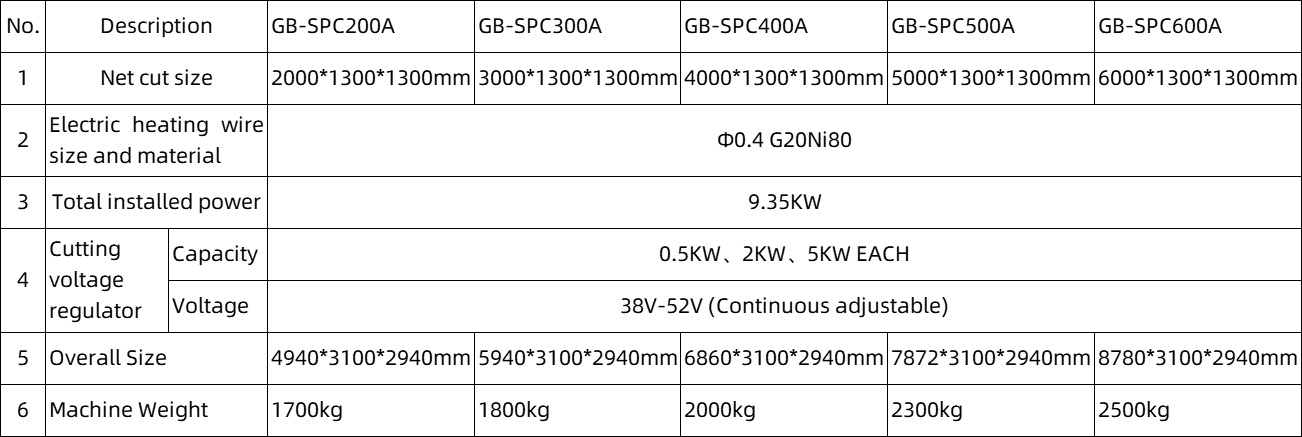

Multi-Stage Voltage Regulation: Equipped with three independent transformers (0.5kW, 2kW, 5kW). Easily select and finely adjust output voltage via the control panel knob. Output voltage is continuously adjustable within the 38V to 52V range , allowing precise control of the heating wire temperature to suit different foam densities, thicknesses, and desired cutting speeds/surface finishes.
High-Efficiency Slicing: Features a dedicated slicing carriage capable of holding and precisely controlling up to 30 heating wires simultaneously. This enables the efficient, single-pass cutting of large foam blocks into multiple panels of equal thickness, significantly boosting batch production efficiency.
4. Intelligent Control & Safety Assurance:
PLC Intelligent Control: Utilizes an advanced Programmable Logic Controller (PLC) as the core, paired with an intuitive touch-screen Human-Machine Interface (HMI). Parameter setup (cutting dimensions, speeds, voltage, modes) is simple and convenient. Programs can be stored and recalled, enabling intelligent operation.
Multi-Level Safety Protection: Standard features include travel limit protection (limit switches installed at the extreme positions of each axis trigger automatic shutdown upon over-travel) and an emergency stop button, effectively preventing machine overrun, collisions, and ensuring the safety of both equipment and operators.
It’s depended on what you have ordered, below is regular delivery for your reference.
EPS Expandable Polystyrene machine: 60 days
EPS Expandable Polystyrene mold: 20-30 days.
EPS Expandable Polystyrene machine spare parts: 3-7 days.
